P-GG

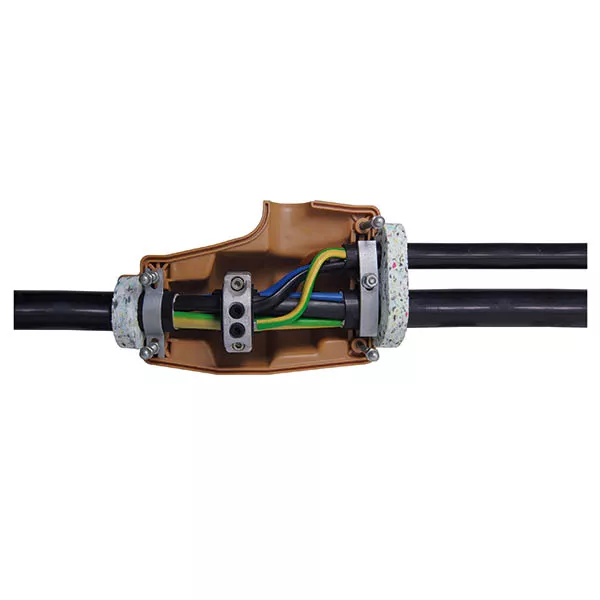

Cast resin branch joint with strain relief for polymeric cables and mass-impreg. paper cables

Universally suitable for branching polymeric cables insulated with PVC, PE, XLPE and paper (e.g. N(A)YY, N(A)KBA, GN-CLN, TT) with or without concentric conductor and mass-impregnated paper cables. With hydrolysis resistance PUR cast resin GG. Suitable for branch clamps on copper and aluminium conductors.

  • P-GG Branch joints

Description

Main descriptionCast resin branch joint
Sub descriptionwith strain relief for polymeric cables and mass-impreg. paper cables
Family descriptionUniversally suitable for branching polymeric cables insulated with PVC, PE, XLPE and paper (e.g. N(A)YY, N(A)KBA, GN-CLN, TT) with or without concentric conductor and mass-impregnated paper cables. With hydrolysis resistance PUR cast resin GG. Suitable for branch clamps on copper and aluminium conductors.
Optional accessoryFor size 2…4 branch clamp KP (see Connecting technology), For size 5…7 branch clamp HE 1/70/150 (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories)
CharacteristicsCompact design, Integrated strain relief, High-quality brown shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting, Integrated strain relief
ApplicationsIndoor, Outdoor, Underground, Water, Installation ducts

Products

Type Type detail Diameter main cable max Art.-No.
Cable types and max. cross sections refer technical data
P 2 GG 25 mm
P 3 GG 35 mm
P 5 GG 54 mm
P 6 GG 59 mm
P 7 GG 59 mm
PC 5 GG 54 mm
PB 4 GG 50 mm
PE 7 GG 59 mm
