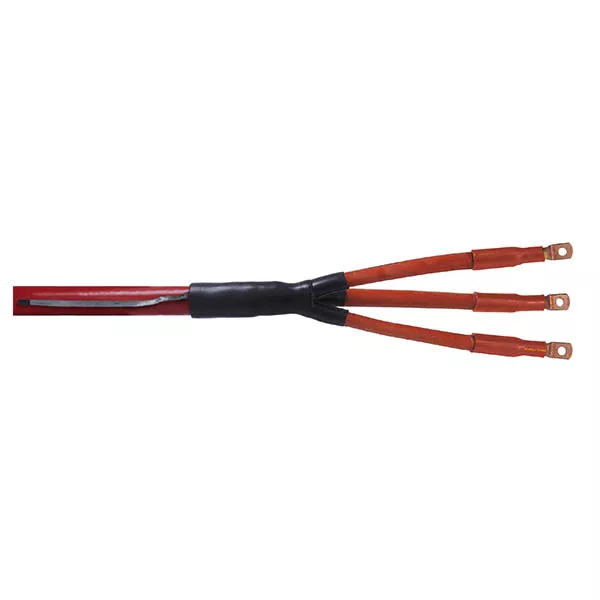

SEEV
3-core indoor cable termination for armoured 3-core polymeric cables up to 7.2 kV
Cable terminations SEEV for indoor applications are suitable to cover armoured 3-core polymeric cables (PVC, PE, XLPE, EPR) without semi-conductive layer. Suitable for compression or screw cable lugs.
Description
| Main description | 3-core indoor cable termination |
| Sub description | for armoured 3-core polymeric cables up to 7.2 kV |
| Family description | Cable terminations SEEV for indoor applications are suitable to cover armoured 3-core polymeric cables (PVC, PE, XLPE, EPR) without semi-conductive layer. Suitable for compression or screw cable lugs. |
| Optional accessory | Cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, High mechanical strength, Quick, safe and easy assembly |
| Applications | Indoor |
Products
| Type | Type detail | Length L | Art.-No. |
|---|
U0/U (Um) 3,6/6 (7,2) kV - 3,8/6,6 (7,2) kV
| SEEV | 16-50 | 280 mm | |
| SEEV | 70-120 | 280 mm | |
| SEEV | 150-240 | 280 mm |
