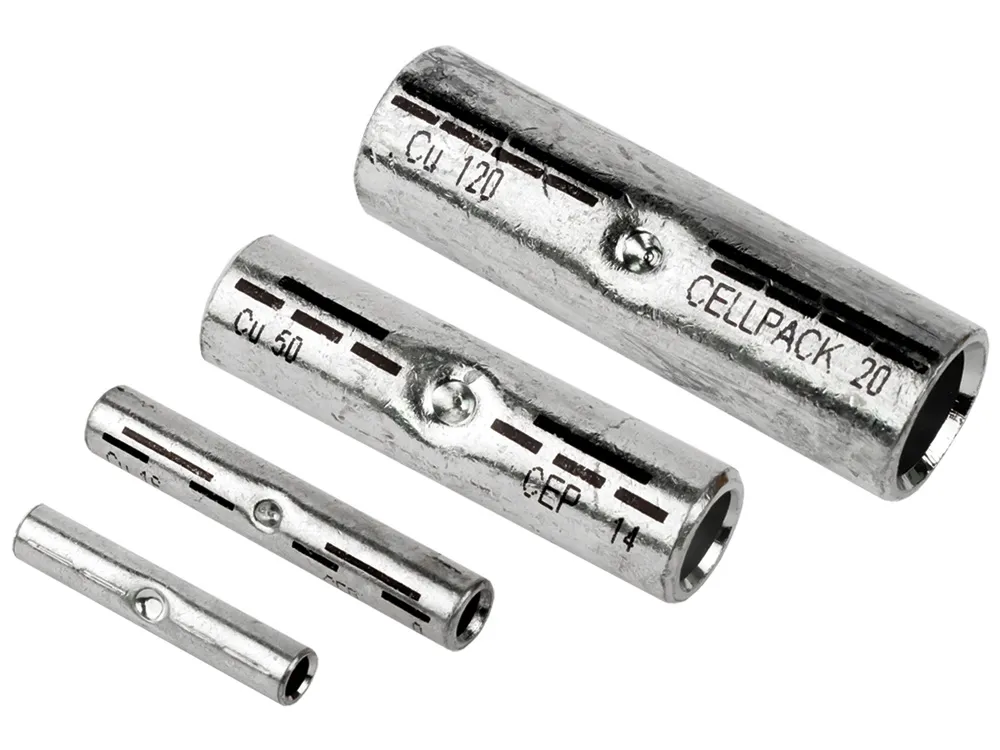

DV-CU-V
Compression connector Cu according to DIN 46267 without separator for low voltage
Strain-relieving connector (hexagonally compressed) for copper conductors, suitable for joints.
Description
| Main description | Compression connector Cu |
| Sub description | according to DIN 46267 without separator for low voltage |
| Family description | Strain-relieving connector (hexagonally compressed) for copper conductors, suitable for joints. |
| Notes | To be used with suitable crimping tool with DIN inserts |
| Applications | Connector for RM/SM (Class 2) copper conductors according to DIN EN 60228 (VDE 0295) |
Products
| Type | Type detail | Nominal cross section max | Art.-No. |
|---|
| DV-CU-V | 6 | 6 mm² | |
| DV-CU-V | 10 | 10 mm² | |
| DV-CU-V | 16 | 16 mm² | |
| DV-CU-V | 25 | 25 mm² | |
| DV-CU-V | 35 | 35 mm² | |
| DV-CU-V | 50 | 50 mm² | |
| DV-CU-V | 70 | 70 mm² | |
| DV-CU-V | 95 | 95 mm² | |
| DV-CU-V | 120 | 120 mm² | |
| DV-CU-V | 150 | 150 mm² | |
| DV-CU-V | 240 | 240 mm² | |
| DV-CU-V | 400 | 400 mm² |
